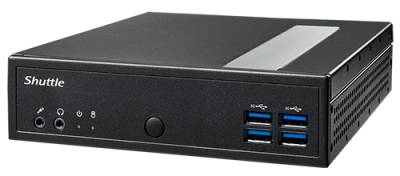

DuVoice DV-NANO

Part numberDV-NANO
Technical part numberCOMP-DS10U
Production start April 2021
Production end
ProcessorIntel Celeron 4205U 1.8Ghz Dual Core CPU
Memory8GB DDR4
Integrated GraphicsIntel UHD Graphics
Hard Drive240GB or larger SSD
AudioRealtek ALC662
Dimensions1.7“H x 6.5”W x 7.5“ L
Power Supply19V 3.42A Power Adapter
LANIntel i211 & Intel i219LM
SlotsM.2 2280 Type M key socket, M.2 2230 Type A,E Key socket
USB4 USB 2.0 Ports, 4 USB 3.1 Ports
Onboard PeripheralsSD Card Reader, Displayport & HDMI Video Connectors
Onboard Serial2 x RS232
Onboard SATA1 SATA III Connector
Operating SystemWindows 11 Pro
Operating Temperature40c Maximum Ambient Temperature (Standing Configuration)
NotesFanless Solid State Design (No moving parts), VESA mount
